ZG 200-400 ZG15 الصلب الكربوني
  • ZG 200-400 ZG15 الصلب الكربونيZG 200-400 ZG15 الصلب الكربوني

ZG 200-400 ZG15 الصلب الكربوني

Zhiye Casting هي شركة مصنّعة ومورد من ZG 200-400 ZG15 من ZG15 مصنع ومورد في الصين. مع Rich Experience R&D Team في هذا المودع ، يمكننا تقديم أفضل حل مهني للعملاء بسعر تنافسي من المنزل والخارج.

إرسال استفسار

وصف المنتج

ZG 200-400 ZG15 Carbon Steel Casting is a high-strength cast carbon steel grade for engineering, where ZG stands for cast carbon steel, 200 stands for a yield point of 200MPa, and 400 stands for a tensile strength of 400MPa.

ZG200-400 has good plasticity, toughness and welding properties, and is suitable for various mechanical parts with low stress and high toughness requirements, such as machine bases, gearbox housings, etc. Its core chemical composition includes carbon (C) ≤ 0.20%, silicon (Si) ≤ 0.60%, manganese (Mn) ≤ 0.80%, sulfur (S) ≤ 0.035%, phosphorus (P) ≤ 0.035%, chromium (Cr) ≤ 0.35%, nickel (Ni) ≤ 0.40%, copper (Cu) ≤ 0.40%


If the customer has high requirements for the product surface and the product weight is relatively light, the silica sol process is a better choice

The fine texture of silica sol combined with relatively fine sand and powder can form a dense and smooth casting mold. The surface of the finished product after casting is smoother and brighter, and the appearance looks more elegant


Material: ZG200-400 (ZG15)

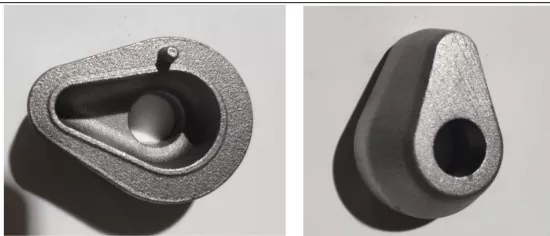

Product name: transition joint

Process: silica sol precision casting

Gross weight: 0.078

Application area: automotive accessories connector

Surface treatment: anti-rust water

The product requires heat treatment and machining

Silica Sol Product Characteristics

 Process

Investment Casting (Green Wax)

Mold

 General Aluminum Mold & Steel Mold

Mold Material

 Middle Temperature Wax

Mold Shell

 Silica sol, Mullite Sand, Zircon Sand

Technology Characteristics

 Suitable for producing small parts. Better precision. Better surface

 roughness. Can large extent reduce machining.

Tolerance Range

 CT5 to CT6

Single Weight

 0.01kgs to 30kgs

Surface Roughness

 RA6.3

Casting Material Type

 Carbon Steel, Alloy Steel, Stainless Steel, Ductile Iron.

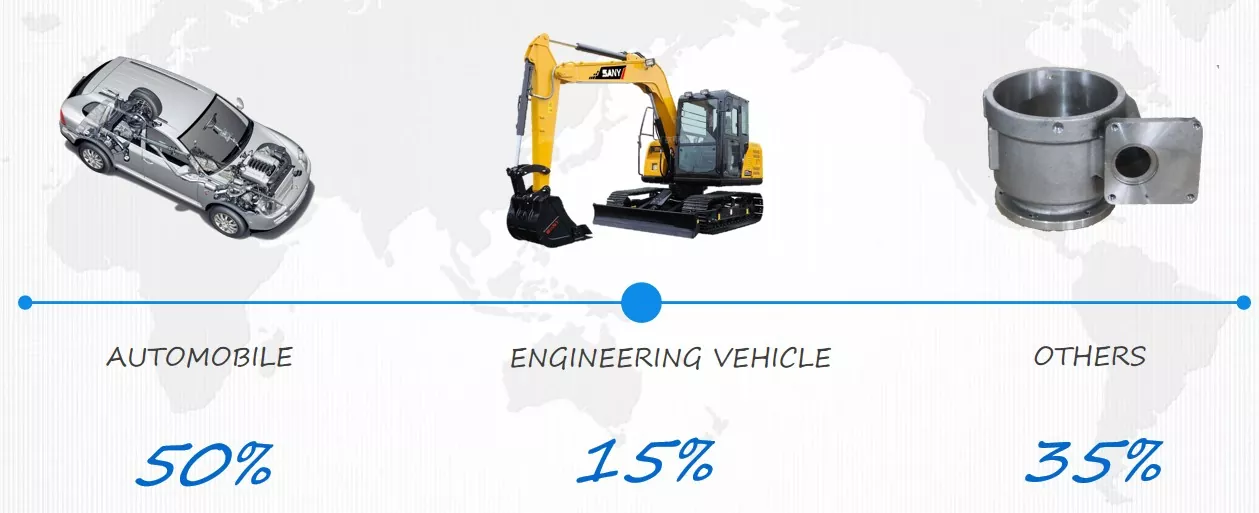

Product application area ratio

Main customers:

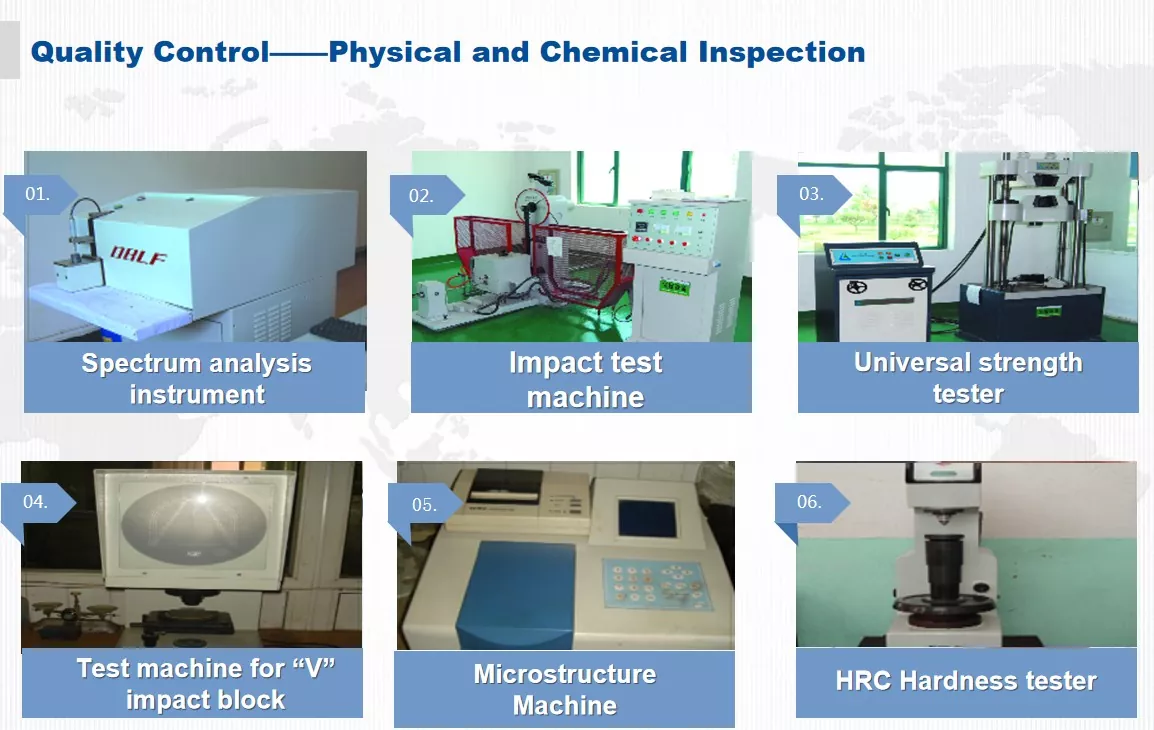

Quality Control

Our production workshop

الكلمات الساخنة: ZG 200-400 ZG15 Carbon Steel Casting ، الصين ، الشركات المصنعة ، الموردين ، المصنع ، الجملة ، اقتباس ، مخصص ، خصم ، سعر أقل ، في الأسهم ، أحدث بيع
